Innuos Statement Server w/ Next-Gen Power Supply Upgrade

$25,400.00

Shipping calculated at checkout.

Our flagship server, designed to take Digital Audio to a new level of performance. A state-of-the-art source for the most discerning audiophiles. ⦿ New linear power supply architecture ⦿ 10mm CNC-machined... Read more

W/ Next-Gen Power Supply Upgrade: 2TB BLACK

  • 2TB BLACK
  • 2TB SILVER
  • 4TB BLACK
  • 4TB SILVER
  • 8TB BLACK
  • 8TB SILVER
$25,400.00

Our flagship server, designed to take Digital Audio to a new level of performance. A state-of-the-art source for the most discerning audiophiles.

⦿ New linear power supply architecture
⦿ 10mm CNC-machined aluminium chassis
⦿ 8 Independent Linear PSU rails
⦿ 8GB RAM with 4GB In-Memory Playback
⦿ EMI-optimised motherboard exclusively designed for Innuos
⦿ New Generation Quad-core Intel CPU
⦿ Custom-designed Ethernet and USB Reclockers with 3bpp OCXO clocks
⦿ Asymmetrical isolation feet

STATEMENT

New Linear Power Architecture

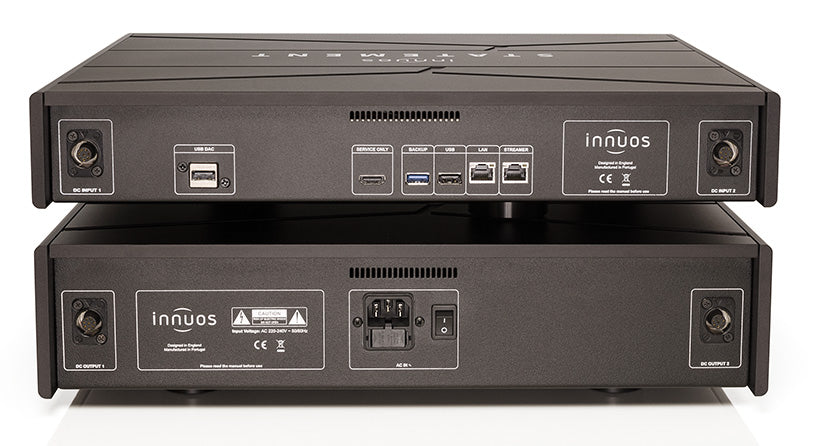

Partnering once again with Dr. Sean Jacobs, a new power supply architecture was designed exclusively for the Statement. The power supply is distributed between two enclosures, with one enclosure containing the AC/DC conversion stage and the other containing the regulation stage together with the server components.

The advantage is clear: regulated “clean” power traverses a very short path, soldered point to point, with the least impedance and exposure to EMI. This is superior in efficiency compared to a traditional architecture where a separate power supply is used – regulated “clean” power needs to go through more obstacles of internal cabling, output connectors, cable, input connectors and more internal cable before it reaches its destination.

8 Independent Linear PSU Rails

Each critical component of the server receives its own dedicated power supply from one of the 8 independent power rails, further preventing component cross-contamination. Of particular note is the use of a dedicated power supply for each of the Ethernet and USB high-precision OCXO clocks, ensuring these clocks work at their best.

Custom-designed Motherboard

The motherboard has been fully EMI-optimised to our own exclusive design by, removing any unnecessary, noise-generating components capable of compromising audio. A fully-customised BIOS ensures the hardware works at its lowest noise without impairing performance. Further EMI treatment is then applied to the motherboard so that EMI is absorbed rather than reflected to other components.

Custom-designed Ethernet and USB Re-clocker

Not fully satisfied with existing USB and Ethernet re-clocking designs, Innuos designed in-house their own boards for this purpose.

At the heart of the design are 3 principles: The use of very high-precision OCXO clocks for timing the signals, extreme care in powering important components preventing cross-contamination, and extremely short paths between components.

While the use of OCXO clocks is not new, the way they are powered and the layout of the board has proven to be extremely important for their performance. As an example, dozens of USB controllers were analysed in terms of how they were powered and clocked so that they allowed this control to be done externally. The USB Controller is regulated by no less than 3 ultra-low noise regulators, one per independent voltage.

Keeping the clock very close to the controllers, via a dedicated track on the board itself, helps to avoid the losses in signal quality that come with the use of external clock units.

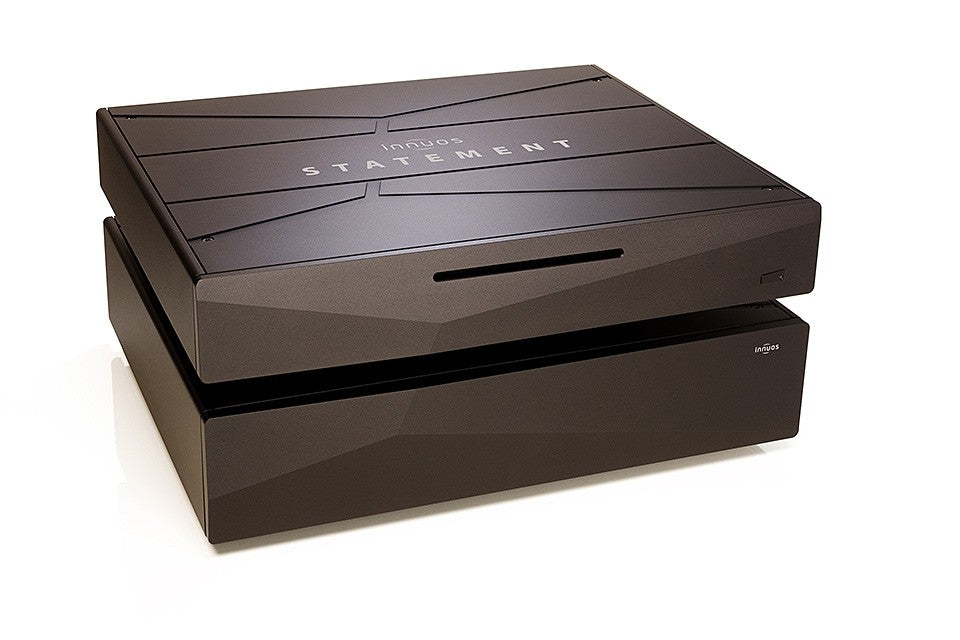

10mm CNC-machined Aluminium Chassis

Housed in a casing of 10mm-thick CNC-machined aluminium, the Statement is not just a pretty face. The thick metal enclosure helps to isolate external EMI, and its weight helps dampen harmful vibration into the system. By using a double-enclosure design, it also helps to contain the vibration effects of the massive 540VA toroidal transformer at its heart.

Specifications

Dimensions Server = 420mm x 352mm x 88mm



Power = 420mm x 352mm x 102mm

(W x D x H)

Weight Server = 8.2kg



Power = 13.4kg

In the box Innuos STATEMENT Music Server
Mains Cable
2x 0.3m umbilical interconnect
2m Ethernet Cable
Quick Start Guide
UPnP/DLNA Integrated UPnP Server
Streaming Services Qobuz, Tidal, Radio Paradise, Internet Radio
Roon Compatibility Roon Core and Roon Endpoint
Average CD Storage Time 5 minutes
CD Metadata FreeDB, MusicBrainz, Discogs, GD3
Compatible Music Systems Sonos Multi-room Wireless Music System
DLNA/UPnP compatible devices
USB DACs complying to USB Audio Class 2
USB DACs supporting DSD over DoP protocol
Selected USB DACs supporting Native DSD
CD/DVD drive TEAC Slot-loading drive
Hard Drive 1TB SSD with Vibration and EMI treatment
CPU Intel Quad Core N4200
Memory 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz, DSD64, DSD128, Native DSD up to DSD512 on selected DACs
Bit Depths 16bit, 24bit, 32bit



CD Formats Red Book
Disc Compatibility CD, CD-R, CD-RW
Audio format for stored CDs FLAC (zero compression), WAV
Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)
Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet
USB 2x USB 2.0 (1x re-clocked, 1x non-reclocked), 1x USB 3.0 (Backup)
Digital Output Re-clocked USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA

Re-clocked dedicated Ethernet Streamer Port
