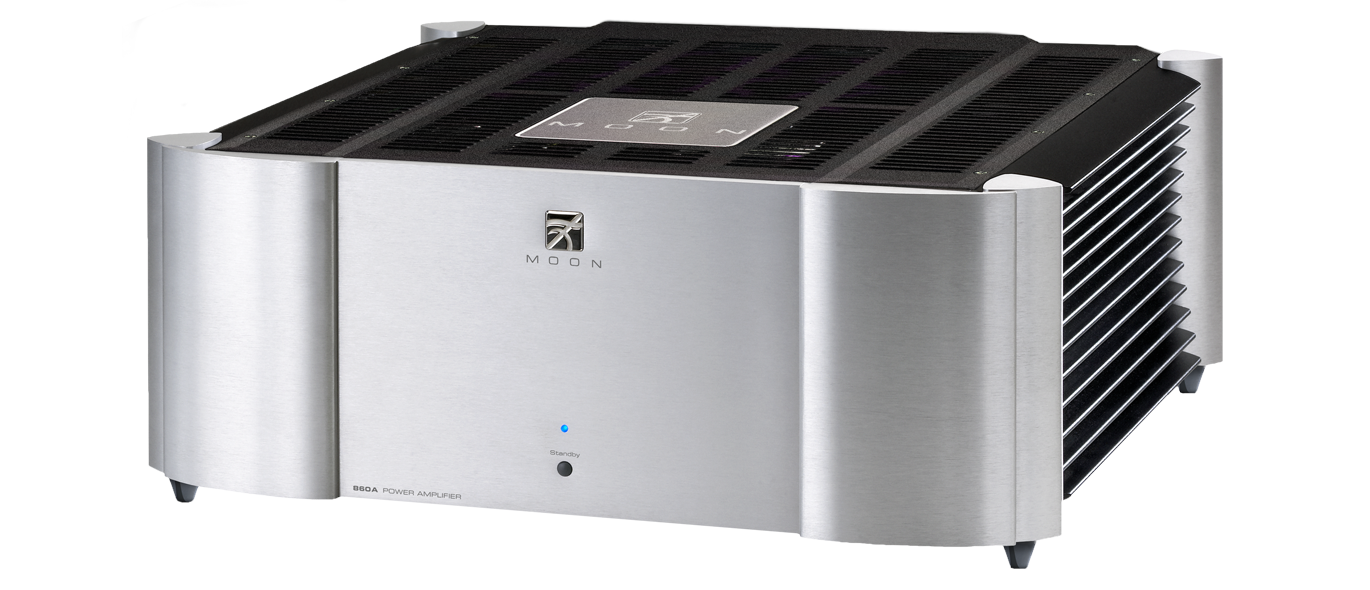

Moon by Simaudio 860A v2 Stereo Power Amplifier (on demonstration)

$19,500.00

While we do not always stock every product in every finish, we can always put something on order for you! And keep in mind, many products are only available through our... Read more

Color: Black

  • Black
  • Silver
  • Two-Tone

While we do not always stock every product in every finish, we can always put something on order for you! And keep in mind, many products are only available through our brick-and-mortar retail store. Give us a ring anytime at 415-614-1118 to place an order or ask us questions, or write to info@audiovisionsf.com.

AVAILABLE IN BLACK, SILVER, OR TWO-TONE.

The MOON 860A v2 Power Amplifier is a balanced differential dual-mono Power Amplifier that provides both exceptional transparency and a remarkable musical soundstage. A true evolution on earlier designs, and incorporates trickle-down technologies from the massive 888 Power Amplifier.

Design features
  • Monaural operation via rear-panel switch.

  • DC-coupled design with DC-servo control for greatest transparency.

  • Switchable AC-coupling for best match with a variety of preamplifiers.

  • Output stable into any load impedance.

  • Class A power output up to 5 watts.

  • Very high damping factor for superior musical dynamics, speaker control and refined harmonic accuracy and timbre.

Specifications
  • Output Power at 8Ω
    225 W per channel
  • Output Power at 4Ω
    450 W per channel
  • Output Power - Monaural mode at 8Ω
    750 W
  • Input Sensitivity
    1.2V
  • Input Impedance
    47,500Ω
  • Gain
    31dB
  • Signal-to-noise Ratio
    110dB @ full power
  • Frequency response (full range)
    10Hz - 55kHz +0/-3.0dB
  • Crosstalk @ 1kHz
    -110dB
  • THD (20Hz - 20kHz @ 1 W)
    0.005%
  • THD (20Hz - 20kHz @ 200 W)
    0.03%
  • Intermodulation distortion
    0.006%
  • Power Supply Capacitance
    240 000 uF
  • Shipping weight
    90 lb / 40 kg
  • Dimensions (width x height x depth)
    18.75 x 7.5 x 17.5 in

  • 47.6 x 19.2 x 44.5 cm
