Items marked (available to demo) are available in our store for audition. Please give us a call or email in advance for an appointment.
- ADD A DAC BOARD
- ADD A PHONO P50 for MM
- ADD A PHONO P100 for MM or MC Cartridge
CALL TO ORDER OPTIONAL BOARDS

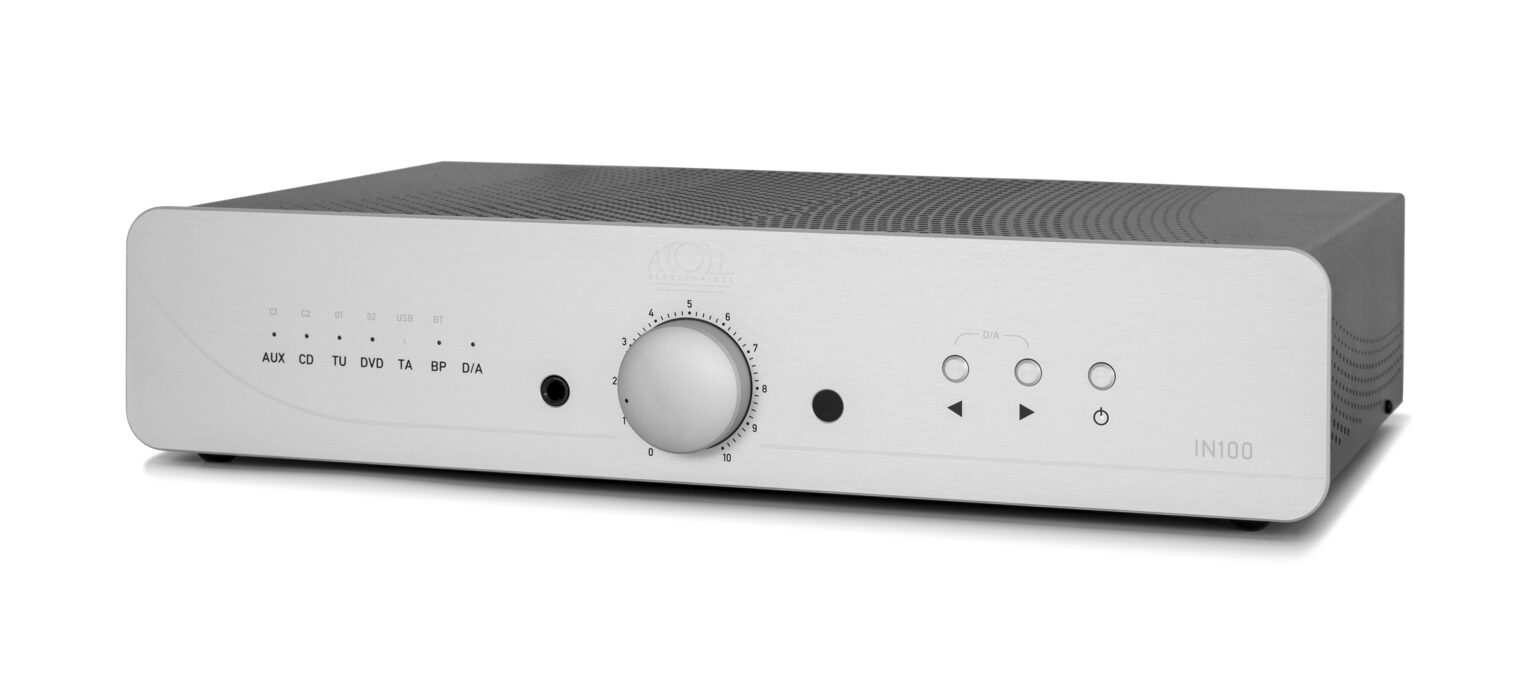

IN100 Signature
The integrated amp-preamp IN100 Signature is manufactured with the utmost care. We choose the best possible components to achieve the highest level of sound performance. This rigorous search for perfection involves designing proprietary ATOLL circuits to preserve the integrity of the most subtle musical signals.
- 4 mm brushed aluminium front panel.
- 2×100 W / 8Ω.
- 2 toroidal transformers of 340 VA each.
- ALPS motorized potentiometer.
- Filter capacitors: 4×6800 μF.
- Single push-pull MOS-FET power stage.
- Monitoring loop.
- Discrete component audio stages.
- MKP Technology Link Capacitors.
- High-performance heat sinks, direct thermal coupling.
- Double-sided circuit boards with nickel/gold finish.
- Polarization of output stages in class A/B.
- Thermal protection.
- Optional ATOLL global remote control.
- The IN100 Signature can receive the following optional boards:
– DAC boards: DA100 and DA200.
– PHONO boards: P50 and P100 (can be combined with DAC boards).

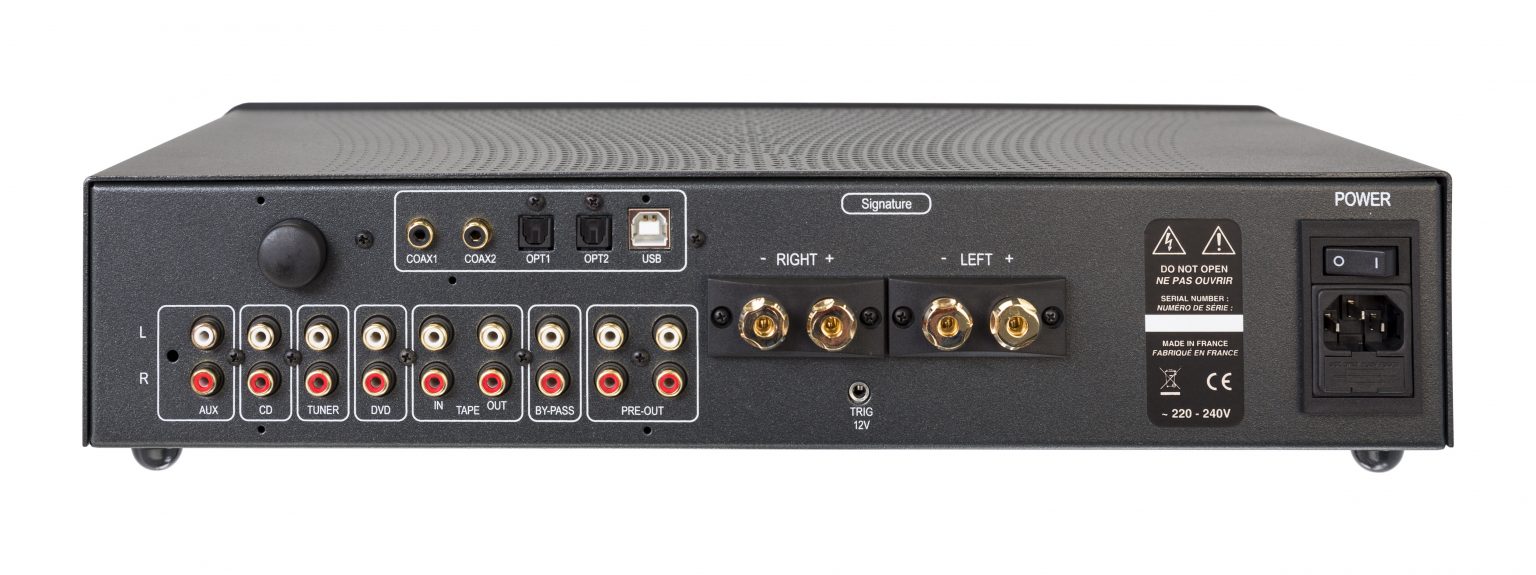

CONNECTIVITY
Inputs
5 Audio inputs (RCA): AUX (or optional P50 / P100 phono stage), CD, TUNER, DVD, TAPE (IN + OUT).
1 BY-PASS input (used as a power amplifier).
Outputs
2 Line preamp outputs (for bi-amplification or to connect a subwoofer).
1 Trigger output (12V).
Various
1 Headphone jack Ø 6,35 mm.
Our balanced MOS-FET amplifier circuits offer excellent harmonic gradients and have no memory effect. Every moment, the current is immediately delivered to your speakers. This is one of the secrets of the musicality that ATOLL amplifiers enjoy.
TECHNICAL DATA
Output power Wrms/8Ω: 2×100 W
Output power Wrms/4Ω: 2×140 W
Power supply: 2×340 VA
Total of capacitors: 31 474 µF
Number of inputs: 5+1 BY-PASS
Preamp outputs: 2
Bandwidth: 5 Hz – 100 kHz
Rising time: 2,5 µs
Input impedance: 357 kΩ
Sensitivity: 100 mV
Signal/Noise ratio: 100 dBA
Distortion at 1 kHz: 0,05% / 10 W
Dimensions: 440×305×95 mm
Weight: 11 Kg
IN100 Sig DOCUMENTS
OPTIONAL BOARDS AVAILABLE
1 Phono board on the AUX input (optional):
- P100 (configurable MM or MC).
- P50 (MM).
———————————
1 Digital board (of your choice):
-
DA200
2 Coaxial inputs (24 bits/192 kHz).
2 Optical inputs (24 bits/192 kHz).
1 Bluetooth receiver.
1 USB-B input: PCM & DSD.
-
DA100
2 Coaxial inputs (24 bits/192 kHz).
2 Optical inputs (24 bits/192 kHz).
XMOS SPECIFIC DRIVER
Important: Using the USB input of the optional DAC board requires downloading a specific driver for Windows computers. This can be downloaded below. This driver is not necessary under MAC and Linux.
|
|
